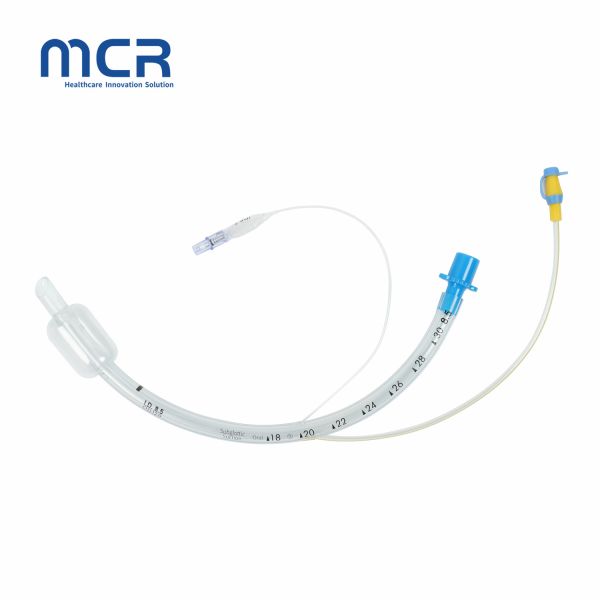

Softer PVC Endotracheal Tube with Suction Port
Used in general anesthesia, intensive care and with emergency care to ensure airway patency, oral intubation and mechanical ventilation. The tube is inserted into the trachea of the patient through the nose or mouth of the patient, to ensure airway patency, so that air enters the lungs. The aspiration port allows you to remove the secret and sputum that accumulated in the patient's trachea.
Available in many different inner diameters, suitable for use in neonates, children, adolescents and adults.
Product Parameter
| Cat.NO | ID(mm) | OD(mm) | Length(mm) |
| MC-15340 | 4.0 | 5.5 | 215 |
| MC-15345 | 4.5 | 6.2 | 240 |
MC-15350 | 5.0 | 6.9 | 256 |
| MC-15355 | 5.5 | 7.5 | 286 |
| MC-15360 | 6.0 | 8.4 | 295 |
| MC-15365 | 6.5 | 9.0 | 301 |
| MC-15370 | 7.0 | 9.6 | 315 |
| MC-15375 | 7.5 | 10.2 | 325 |
| MC-15380 | 8.0 | 10.8 | 337 |
| MC-15385 | 8.5 | 11.3 | 337 |
| MC-15390 | 9.0 | 11.9 | 337 |
Instructions for Use
Priortointubation,deflatethecuffcompletely.
Afterintubation,inflatethecuffusingthe minimum volume of air required to provide an effective seal.
Immediately after cuff inflation,auscultate both lung fields.If breath sounds diminished over one
lung field or absent over one or both fields,adjust the tube as required.
Endotracheal tube placement should be confirmed by viewing the position of the tube tip with a chest radiograph.
Manufacturer Profile
MCR Medical, headquartered in Hua Chuang Industrial Park, Guangzhou, China, has been providing premium medical disposable products globally since 2018. Specializing in anesthesia, respiratory, gastroenterology, and home care products, our solutions serve markets across North America, Europe, South America, Asia, and the Middle East.
Our 2,400 square meter 100,000-level purification workshop features advanced production lines and inspection facilities. We maintain rigorous quality control from raw material inspection through production, supported by a CFDA-standard physical and chemical lab.
